A 240V welder drawing 30-50 amps needs an 8-gauge extension cord no longer than 50 feet to avoid voltage drop that kills arc stability and penetration. A 120V welder on a 20-amp circuit needs 12-gauge minimum up to 50 feet or 10-gauge for 50-100 feet.

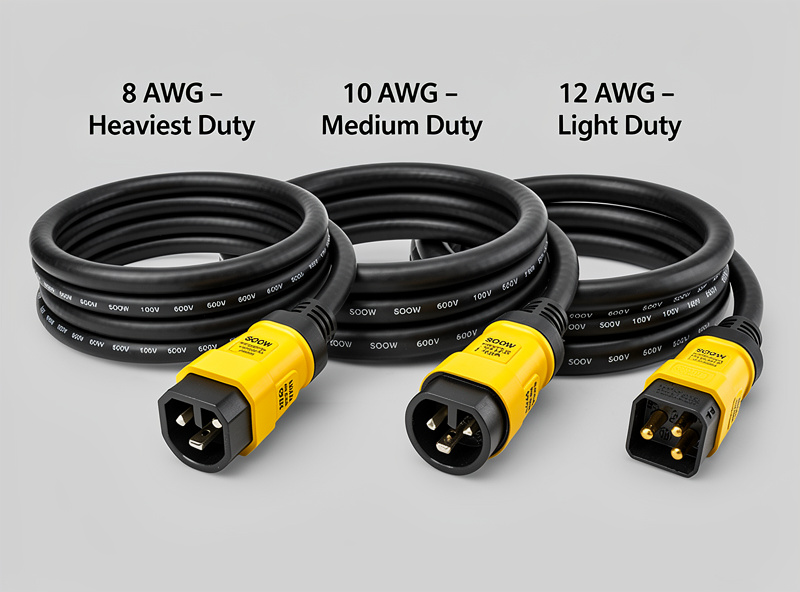

Using a standard orange 16-gauge extension cord with a welder drops the voltage at the machine by 10-15 volts — enough to turn a penetrating arc into a surface-sitting cold bead the welder’s settings cannot compensate for. Get the gauge wrong on the first cord you buy and your 140-amp MIG behaves like an 80-amp machine — exactly the trap I walked into on the driveway, told in the next paragraph.
I learned this lesson on the driveway — the garage breaker was not installed yet and the welder needed to reach 40 feet to the outdoor outlet. The orange extension cord I used for Christmas lights dropped the arc voltage enough that my 140-amp MIG welder behaved like an 80-amp machine. Beads that penetrated fine on a short cord sat on top of the metal with the extension cord in the circuit. The 8-gauge welding extension cord that replaced it cost 80 dollars and restored full welder performance instantly. For the broader equipment context, see the essential welding equipment guide. For the electrical setup behind the outlet, see how to set up a home welding workshop.
Why Voltage Drop Matters for Welders
Voltage drop is the reduction in voltage between the outlet and the welder caused by electrical resistance in the extension cord. Longer cords, thinner wire, and higher amperage all increase voltage drop. A welding machine’s output amperage is directly tied to input voltage — lose 10 volts at the input and the machine cannot deliver its rated output, regardless of where the voltage and wire speed dials are set.
The math: a 50-foot 12-gauge cord carrying 20 amps at 120V drops roughly 3.2 volts (2.7% loss). The same cord carrying 30 amps at 240V drops roughly 3.2 volts (1.3% loss) — the percentage loss is lower at 240V because the same amperage represents a smaller fraction of the total voltage. A 50-foot 16-gauge cord carrying 20 amps at 120V drops roughly 8 volts (6.7% loss) — enough to degrade arc quality noticeably. A 100-foot 16-gauge cord under the same load drops roughly 16 volts (13.3% loss) — the welder will not maintain a stable arc at all.
The practical rule for extension cord gauge by amperage and length:
| Welder Amperage | Up to 25 ft | 25-50 ft | 50-100 ft |
|---|---|---|---|
| 120V, 20A (small MIG) | 12 AWG | 12 AWG | 10 AWG |
| 120V, 30A (large 120V MIG) | 10 AWG | 10 AWG | 8 AWG |
| 240V, 30A (mid MIG/stick) | 10 AWG | 10 AWG | 8 AWG |
| 240V, 40A (large MIG/stick) | 8 AWG | 8 AWG | 6 AWG |
| 240V, 50A (max home welder) | 8 AWG | 6 AWG | 6 AWG (max 75 ft) |
Extension Cord Construction: What Makes a Welding Cord Different
A welding extension cord is not just a heavy-gauge household cord with different plugs. Three construction differences matter:
SOOW or SJOOW jacket rating: Welding extension cords use SOOW (Service, Oil-resistant jacket, Oil-resistant insulation, Weather-resistant) or SJOOW (Junior, 300V max) rated cable. The jacket resists oil, grease, water, abrasion, and the occasional hot spatter drop — none of which a standard PVC-jacketed household extension cord survives. PVC melts at roughly 200 degrees; SOOW rubber resists momentary contact with hot spatter.
Strand count and flexibility: Welding cords use finely stranded copper conductors (Class K or Class M stranding) for flexibility in cold weather and tight workshop routing. Standard household cords use coarse stranding that stiffens in cold temperatures and resists coiling and uncoiling. A 50-foot 8-gauge welding cord coils into a manageable 18-inch loop; a 50-foot 8-gauge household cord would be too stiff to coil by hand.
Plug and receptacle rating: Welding cords use NEMA 6-50P (plug) and 6-50R (receptacle) connectors rated for 50 amps at 250V per ANSI/NEMA WD 6 (the connector configuration standard). These are the standard welding outlet connectors. Adapters exist for NEMA 14-50 (EV charger outlets), 14-30 (dryer outlets), and 5-15/5-20 (standard 120V household outlets), but every adapter adds a connection point that introduces resistance and voltage drop. I run a Conntek 14-50P to 6-50R adapter when I need to plug into the dryer outlet for short outdoor jobs — works fine for under 30 amps, but the brass blades warm up noticeably above 35A so I keep those sessions short. Minimize adapters, and never daisy-chain two extension cords together.
What to Buy: Cord Length, Gauge, and Cost
For a home welding shop, buy one 25-foot 8-gauge 240V welding extension cord with NEMA 6-50 connectors (80-120 dollars). This covers 90% of situations where the welder needs to reach beyond its built-in power cord — driveway projects, outdoor repairs, welding on the far side of a large workpiece. The 8-gauge specification at 25 feet for 50-amp service matches the NEC Table 400.5(A)(1) ampacity rating for SOOW Class K stranding — anything thinner is out of code for the load. I run an Iron Box IBX-50A-25 cord (8/3 SOOW, NEMA 6-50P to 6-50R) on my YesWelder MIG-PRO205DS — bought it for 92 dollars three years ago, zero performance issues at 30 amps continuous. A 50-foot cord (120-180 dollars) handles the remaining 10% of situations.
Buy a pre-made welding extension cord rather than building one from bulk cable and connectors unless you are comfortable with high-amperage electrical assembly. Pre-made cords are tested, the connectors are properly crimped and sealed, and the warranty covers manufacturing defects. My second cord is a Parkworld 8/3 50-foot for when the project sits at the edge of the driveway — same NEMA 6-50 termination, slightly stiffer jacket than the Iron Box, but it has not glitched once on a 40-amp stick session. A DIY cord with a loose connector screw adds resistance at the plug, which generates heat, increases voltage drop, and can melt the connector housing under sustained load.
Recommended sources for pre-made welding extension cords: weldingsupply.com, Amazon (brands: Iron Box, Parkworld, Conntek), and local welding supply stores. Prices below are approximate 2026 retail:
| Length | 8 AWG (50A) | 6 AWG (50A) |
|---|---|---|
| 25 ft | $80-100 | $120-150 |
| 50 ft | $130-160 | $200-250 |
| 100 ft | $250-300 | $350-450 |
Extension Cord Safety Rules for Welders
- Never coil a cord while under load: A coiled extension cord carrying welding current creates an electromagnet — the coil generates heat through induction, and a tightly coiled 50-foot 8-gauge cord under 40 amps can melt its own jacket from internal heat buildup. Always fully uncoil the cord before welding.
- Never daisy-chain extension cords: Each connection point adds resistance, heat, and a failure point. Two 25-foot cords connected together have higher total resistance than one 50-foot cord because the connector in the middle adds roughly 0.01 ohms of contact resistance.
- Inspect the cord before every session: Check for cuts, abrasions, melted jacket sections, loose connectors, and bent or corroded plug blades. A damaged cord under 240V/50A load can arc internally and start a fire before the circuit breaker trips.
- Keep the cord away from the welding zone: Route the cord behind the welder, not across the welding table or under the workpiece. Spatter drops burn through SOOW jackets eventually, and a spatter-damaged cord is a short-circuit waiting to happen under load.
- GFCI note: Most 240V welding circuits are not GFCI-protected because the arc’s high-frequency noise can nuisance-trip GFCIs. This means an extension cord fault may not trip the breaker — the cord itself must be in good condition. For the general electrical safety picture, see the welding safety guide.
Frequently Asked Questions
What gauge extension cord do I need for a 240V welder?
An 8-gauge cord for runs up to 50 feet at 40-50 amps. For a 30-amp welder under 50 feet, 10-gauge is sufficient. For runs over 50 feet, step up one gauge (8-gauge for 30A, 6-gauge for 50A) to compensate for voltage drop over distance.
Can I use a standard household extension cord with my welder?
No — standard household extension cords (16 or 14-gauge) cannot carry welding amperage without severe voltage drop. A 50-foot 16-gauge cord under 20 amps drops roughly 8 volts (6.7%) and the arc becomes unstable at the gun. Use only welding-rated SOOW or SJOOW extension cords with the correct plug type and gauge for your welder.
Why does my welder not weld as well with an extension cord?
Voltage drop in the extension cord reduces the input voltage at the welder, which reduces the maximum output amperage the machine can deliver. A 10-volt drop at the input translates to roughly a 20-30 amp reduction in output on a MIG welder. Use a shorter cord or heavier gauge to minimize voltage drop.
How long can a welding extension cord be?
Maximum recommended length for an 8-gauge welding extension cord at 50 amps is 75 feet. Beyond 75 feet, voltage drop exceeds 3-4% even at 8-gauge, and 6-gauge becomes necessary. For 30-amp welders, 10-gauge handles up to 100 feet with acceptable voltage drop.
Should I fully uncoil my welding extension cord before using it?
Yes — a coiled extension cord under welding current generates heat through electromagnetic induction. A tightly coiled 50-foot 8-gauge cord under 40 amps can overheat and melt the jacket from the inside. Always uncoil the full cord length before striking an arc.
Can I make my own welding extension cord to save money?
Yes, if you are comfortable with high-amperage electrical assembly and use properly rated components (SOOW 8/3 cable, NEMA 6-50P and 6-50R connectors). The cost savings versus a pre-made cord are roughly 15-25 dollars. Ensure all terminal screws are torqued to spec — a loose connection adds resistance and heat at the plug.
